sales@leadtopfluid.comLUFC Series Curtain UF Module
Location：en > Product > UF Module > LUFC Series >

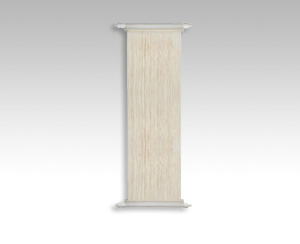

LUFC Series Curtain UF Module
-
Leadtop LUFC Series Curtain UF Module use strong PVDF Hollow fiber membrane, more suitable for bad working condition like MBR. It mainly apply for waste water treatment like Municipal, power plant, Steel plant, Petrochemical, textile, Food industry, etc.
Application:
1.Municipal Waste water treatment
2.Industrial Waste Water treatment
3.Landfill leachate treatment
-
Product Details
-
Order Information
Features:
1.Hydrophilic Modification Membrane more smooth surface, good anti-pollution capacity.
2.High porosity, high flux, Stable effluent quality.
3.PVDF membrane have wide chemical compatibility.
4.hollow fiber membrane have strong lining, not easy break.
5.Specially treated coat not easy to peel off.
6.The module simple structure easy to install.
7.Backwash with low operating pressure, energy saving.
Order Information:
|
Filtration area（m2） |
10 |
15 |
20 |
|
Item No |
LUFC4010 |
LUFC6015 |
LUFC8020 |
|
Collector pipe center distance L(mm/inch) |
1,025/40.35 |
1525/60.04 |
2025/79.72 |
|
Collector pipe Width W(mm/inch) |
535/21.06 |
||
|
Connection size |
DN25 |
||
|
Flux（LMH） |
15-30 |
||
|
Air pipe Connection |
DN20 |
||
|
Weight (kg/lb) |
6/13.23 |
8/17.64 |
10/22.05 |
|
Back wash pH Range |
2-11 |
||
|
Max chlorine-resistant（ppm） |
1000 |
||
|
Backwash Pressure（bar） |
3 |
||
