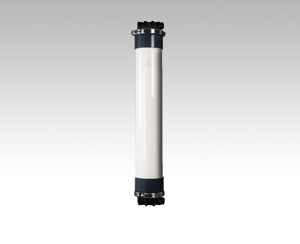

LUFM Series Column Type

  • Leadtop LUFM Series Column type UF Module is made of Hollow fiber PVDF membrane. It has high flux, stable effluent quality and anti-pollution capacity. It can remove the solid, bacteria, microorganism from the water. Anti-pollution capacity can decrease the operation cost and back wash frequency.

    Application:
    1.Municipal Waste Water treatment
    2.Surface Waste Water treatment
    3.Underground Water treatment
    4.Food & Beverage filtration
    5.Industrial Waste Water treatment
    6.RO pre-filtration
  • Product Details

  • Order Information


Features:
1.High Flux
2.Uniform Pore size, stable effluent quality
3.Good Anti-pollution capacity
4.Excellent chemical compatibility
5.Low operation cost


Order Information:

Item no LUFM4040 LUFM6040 LUFM8040 LUFM8060 LUFM1060
Membrane PVDF PVDF PVDF PVDF PVDF
L1(mm) 1225 1352 1470 1870 1670
L2(mm) 1025 1125 1055 1455 1595
D(mm) 90 160 200 200 250
A(mm) 115 190 240 240 273
Filtration area (M2) 8 25 40 60 75
Connection Size DN25 DN32 DN32 DN40 DN40
Backwash Flux(L/H) 600 2000 3200 4500 5500
Membrane Pore Size(um) 0.03
Membrane ID/OD(mm) 0.7/1.3
Max chlorine residue concentration( ppm) 2000
Design Flux(L/MH) 50-120
Max Operating temperature(℃) 60
pH Range 2-11
