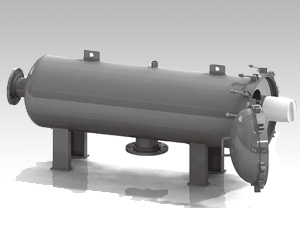

LHFV Series HF Cartridge housing
-
Leadtop LHFV Series HF Cartridge housing is special designed to match with Leadtop HF series High flow Cartridge filter. Compared to traditional cartridge housing, it has higher flow rate, smaller foot print and more easily handle. It can designed horizonal or vertical, materials can choose Carton steel ,S304, 316L.
-
Product Details
-
Order Information
Specifications:
Housing Materials:Carbon Steel/S304/316L
Vent/Drainage valve:S304/316L
Swing bolt/Legs:S304
Housing Seal Materials:Silicone/EPDM/Viton
Polishing:Inner 0.6um，Outer 0.8um
Performance:
Design Pressure:6 bar
Max Operating Pressure:6 bar
Max Operating temperature:150℃
Connection:
Housing body:Flange
Inlet/Outlet:Flange
Vent Valve:G1/2”
Drainage Valve:G1”
Gauge valve:M14*1.5
Order Information EG:LHFVH540CFE
|
LHFV
|
Structure |
Cartridge Qty |
Cartridge Length |
Housing Materials |
Inlet/Outlet Connection |
Seal Materials |
|
H：Horizonal |
1:1 Cartridge |
20:20” |
A:S304 |
T:Tri Clamp |
S:Silicone |
|
|
V: Vertical |
3:3Cartridges |
40:40” |
B:316L |
F:Flange |
E:EPDM |
|
|
|
5:5Cartridges |
60:60” |
C:Carbon Steel |
N:NPT |
V:Viton |
|
|
|
7:7Cartridges |
|
|
|
|
|
|
|
…… |
|
|
|
|
