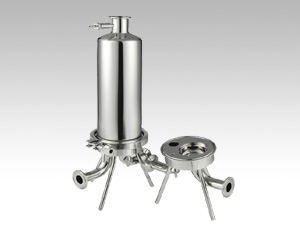

LSH Series Sanitary Cartridge housing
-
Leadtop LSH Series Sanitary Cartridge housing made of S304 or 316L. With the Pleated Cartridge filter as filter element, it can remove the particles and bacteria of air and liquid. Can designed single or Multi cartridges as demand.
-
Product Details
-
Order Information
LSHY Series SS cartridge housing for Liquid
Material:S304 or 316L
Polishing:Inner 0.6um，Outer 0.8um
Design Pressure:6bar
Cartridge Qty:1/3/5/7/9 (can design as demand)
Inlet /Outlet:Tri clamp（can choose Flange）
Housing seal materials:Silicone/EPDM/Viton
LSHG Series SS cartridge housing for Air
Material:S304 or 316L
Polishing:Inner 0.6um，Outer 0.8um
Design Pressure:6bar (can design 10 bar)
Cartridge Qty:1/3/5/7/9 (can design as demand)
Inlet /Outlet:Tri clamp（can choose Flange）
Housing seal materials:Silicone/EPDM/Viton
Order Information：EG:LSHY3ACF
| LSHY/LSHG | Cartridge Qty | Materials | Cartridge Filter connection | Inlet/Outlet Connection |
| 1：Single | A:316L | D：DOE | T：Tri Clamp | |
| 3:3 Cartridges | B:S304 | C: 222 | F：Flange | |
| 5:5 Cartridges | J：226 |
