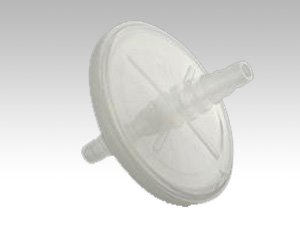

LS50 Series air vent filter
- Leadtop LS50 Series air vent filter is made in Class 100,000 clean room. It has the filtration area of 19.6cm2 and 7-13mm hose barb connection with both non-sterile and sterile package. Widely used for air vent for fermentation tank , bioreactor, etc.
-
Product Details
-
Order Information
Specifications:
Materials of Construction
Filter Media:PP/GF/ Hydrophobic PTFE，PP or GF pre-filtration (optional)
Cage:PP
Inlet/Outlet:7-13mm Hose barb
Filtration Area:≥19.6cm2
Pore Size:0.22/0.45/0.8/1/3/5um
Bubble Point（0.22um PTFE）:≥0.09Mpa,60%IPA
Air Flow rate（0.22um PTFE:≥25L/Min@0.1Mpa
Max Operating temperature:60℃
Max Operating Pressure drop:3bar @23℃;2.5bar@60℃
Sterilization:121℃,30 Mins Autoclave or EO sterilization
Order Information EG：LS50PFB0.22S
|
LS50 |
Filter Media | Pore Size | Sterile or not |
| P：PP | 0.22:0.22um | N：Non Sterile | |
| G：GF | 0.45:0.45um | S:Sterile | |
| PFB：Hydrophilic PTFE | 1:1um | ||
| 3:3um |
