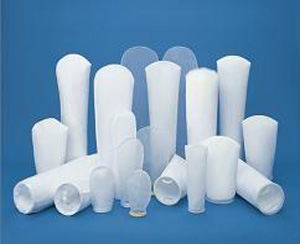

LBF Series

  • Leadtop LBF Series Filter Bag is made of High performance filter media fiber, using Sewing or thermal welded technology. We have Economy type, High efficiency type, and Oil absorption type for your options.

    Economy type

    EPO type Filter bag is made of PP fiber, press polish surface avoid fiber release
    ESG type Filter Bag is made of Polyester fiber, with the Polyester Collar, it can endure max 120℃ high temperature.
    ENMO type Filter bag is made of Nylon fiber mesh, it has the stable and uniform pore size, can endure high temperature and filter rigid particles.

    High Efficiency type
    HPO type Filter bag is made of long and fine PP fiber. It has very high filtration efficiency near to absolute filtration. 100% PP material free of silicone oil and other chemicals.
    HPM type Filter bag is made of laminated long and fine PP fiber, it has the minimum 0.5 micron size, mostly used for fine filtration.

    Oil Absorption Type
    ZMH type Filter bag is made of multi-Layer of fine PP fiber.PP has hydrophobic and oleophilic properties to attract oils and repel water, enabling to separate and remove oils from aqueous solutions.
  • Product Details

  • Order Information


Technical Specifications:

Type Filter Media Max operating Temp (℃) Max Operating Pressure Drop Size(mm) Pore Size (um)
EPO PP Fiber 80 0.2Mpa@20℃
0.1Mpa@80℃

1#:φ180*420
2#:φ180*810
3#:φ102*220
4#:φ102*380
5#:φ150*510


0.5,1,3,5,10,20,30,50,75,100
ESG PE Fiber 120 0.2Mpa@20℃
0.1Mpa@120℃
ENMO Nylon Fiber 160
0.2Mpa@20℃
0.1Mpa@80℃
HPO Fine PP Fiber 80
HPM Laminated Fine PP fiber 80
ZMH Multi Layer Fine PP fiber 80





Order Information EG:LBF2ENMOS10P

LBF Size  Type Welded Pore size Collar
1:1# EPO: R:thermal Welded 0.5:0.5um P:PP
2:2# ESG S:Sewing   1:1um S:SS
3:3# ENMO   3:3um E:PE
4:4# HPO   5:5um
5:5# HPM   10:10um
  ZMH   20:20um
