LKHF Series High Flow
-

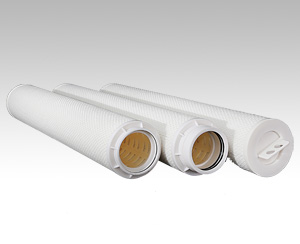

Leadtop LKHF Series High Flow Cartridge Filter is made of deep Pleated PP or GF with the diameter of 6 inch. It has high flow rate and very low initial pressure drop. The filter has two types support appearance, PP outer cage and Polyester Net.
Application:
SWRO pre-filtration,Power Plant Condense Water,Boiler Water,Food&Beverage.
-
Product Details
-
Order Information
Features：
Large effective filtration area,high flow rate,low pressure drop.
Gradient aperture depth filtration guarantee Large dirt holding capacity,long service life.
Specifications:
Dimension:
Diameter:152mm
Length:20,40,60″
Material of Construction:
Media:PP / GF
Support layer:PP / PE
End Caps:PP / GF reinforced PP
Performance
Max Operating Temperature:PP:80℃ / GF:121℃
Max Pressure Drop:3.5 bar @21℃
Recommended Change out Pressure drop: 2.5bar@21℃
Max Flow rate:40":70T/H 60":110T/H
Order Information EG:LKHFP5AC40N
| LKHF | Filter Media | Pore Size | End caps | Support Appearance | Length | Seal Materials |
| P: PP | 0.5:0.5um | A:Single O-ring | C:PP outer Cage | 20:20” | S:Silicone | |
| G:GF | 1:1um | B:Double O-ring | N:Polyester Net | 40:40” | E:EPDM | |
| 3:3um | 60:60” | N:Buna-N | ||||
| 5:5um | V:Viton | |||||
| 10:10um | ||||||
| 20:20um | ||||||
| 40:40um | ||||||
| 70:70um |
