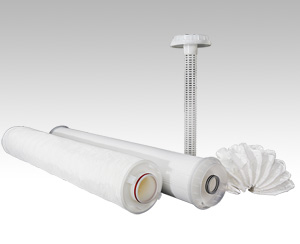

LMHFH Series Horizonal Pleated High Flow

  • Leadtop LMHFH Series high flow pleated filter cartridges are made from depth fine PP non-woven fabrics. The filter has a big diameter of 6.5 inch/165mm. With horizonal pleat technology the filter has max. Filtration area compare with same size filters. Big filtration area comes out high flow rate. The long service life and high flow rate result in low investment and less manpower in many applications.

    Application:
    SWRO pre-filtration, Power Plant Condense Water, Boiler Water, Food&Beverage.
  • Product Details

  • Order Information


Features:
Large effective filtration area,high flow rate,low pressure drop.
Gradient aperture depth filtration guarantee Large dirt holding capacity,long service life.

Specifications:
Dimension:
Diameter:165mm
Length:20,40,60″

Material of Construction:
Media:PP / GF
Support layer:PP / PE
End Caps:PP / GF reinforced PP

Performance:
Max Operating Temperature:PP:80℃ / GF:121℃
Max Pressure Drop:3.5 bar @21℃
Recommended Change out Pressure drop:2.5bar@21℃
Max Flow rate:40":70T/H    60":110T/H




Order Information  EG:LMHFHP5A40N

LLMHFH

Filter Media

Pore Size

End Cap

Length

Seal Materials

P: PP

0.5:0.5um

A: “” Type

20:20”

S:Silicone

G:GF

  1:1um

B:”” Type

40:40”

E:EPDM



3:3um



60:60”

N:Buna-N



5:5um





V:Viton



10:10um









20:20um









40:40um









70:70um
