LPFB Series Hydrophobic PTFE
-

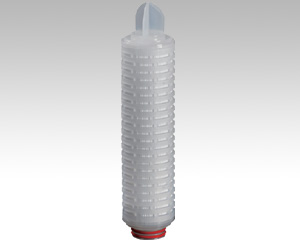

Leadtop LPFB Series Hydrophobic PTFE Membrane Cartridge Filter –Hydrophobic, High Temperature endurance.
Leadtop LPFB Series Hydrophobic PTFE Membrane Cartridge Filter has wide chemical compatibility, resistant to strong alkali acids, aggressive gas and solvents, high temperature endurance performance. It has the absolute rating, filtration efficiency≥99.99%, up to 0.01um in gas sterile filtration.
Application:
Gas sterile filtration, Solvents/Corrosive liquid Sterile filtration.
-
Product Details
-
Order Information
Material of Constructions：
Media:Hydrophobic PTFE membrane
Support Layer/Cage/Inner Core/End Cap:PP
Effective Filtration Area:0.7㎡/10”
Performance:
Max Operating Temperature: Liquid :90℃ / Gas:100℃
Max Operating Pressure Drop:4bar@21℃， 2.4bar@90℃, 0.5 bar@121℃
Steam Sterilization (Autoclave):121℃/30Mins
Biology Safety:
Extractables: ﹤30mg/10”
Endotoxin: ﹤0.25EU/ml
Filtration Performance:
Grade MPPS Liquid Bacteria Challenge level
0.22um ≥99.9996% ≥ 107CFU/cm2
Order Information EG:LPFB0.22F10SP
| LPFB | Pore Size | End Caps | Length | Seal Material | Core |
| 0.1:0.1um | D:DOE | 5:5” | S:Silicone | P: PP Core | |
| 0.22:0.22um | C:222 Flat | 10:10” | E:EPDM | S: SS Core | |
| 0.45:0.45um | E:222Flat/SS Lining | 20:20” | N:Buna-N | ||
| 1:1um | F:222 Fin | 30:30” | V:Viton | ||
| 3:3um | H:222Fin/SS Lining | 40:40” | T:PTFE | ||
| 5:5um | J:226 Flat | F;Encapsulated PTFE | |||
| K:226 Flat/ SS Lining | |||||
| M:226 Fin | |||||
| P:226 Fin/SS Lining |
