LJN Series N66
-

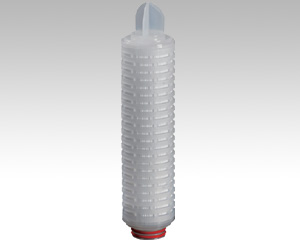

Leadtop LJN Series N66 Cartridge Filter---more suitable for alkaline Chemical filtration.
Leadtop LJN Series N66 Cartridge Filter is made in Class 100,000 clean room, Each filter is 100% integrity tested. The N66 Membrane is naturally hydrophilic, High non-specific adsorption and low extractables, and chemical resistant to alkaline solutions and organic solvents.
Application：
LVP,SVP Sterile Filtration, Vaccine, Buffer Sterile Filtration, APIS Sterile Filtration, Pigment/Solvent Ink.
-
Product Details
-
Order Information
Material of Constructions：
Media:N66 membrane
Support Layer/Cage/Inner Core/End Cap:PP
Effective Filtration Area:0.68㎡/10”
Performance:
Max Operating Temperature:90℃ (1 week)
Max Operating Pressure Drop:4bar@21℃， 2.4bar@80℃
Steam Sterilization (Autoclave):121℃/30Mins
Filtration Performance:
Grade Bacteria Challenge Level
0.22um ≥ 107CFU/cm2,ATCC 19146
0.45um ≥ 107CFU/cm2,ATCC 14756
Biology Safety
Extractables: ﹤30mg/10”
Endotoxin: ﹤0.25EU/ml
Order Information EG:LJNDM10EP
| LJN | Pore Size | End Cap | Length | Seal Materials | Core |
| A: 0.22um | D:DOE | 5:5” | S:Silicone | P: PP | |
| B: 0.45um | C:222 Flat | 10:10” | E:EPDM | S: SS | |
| C: 0.45+0.22um | E:222 Flat / SS Lining | 20:20” | N:Buna-N | ||
| D: 0.45+0.45um | F:222 Fin | 30:30” | V:Viton | ||
| E: 0.22+0.22um | H:222 Fin / SS Lining | T:PTFE | |||
| G:1.2um | J:226 Flat | F:Encapsulated PTFE | |||
| K:226 Flat / SS Lining | |||||
| M:226 Fin | |||||
| P:226 Fin / SS Lining |
