LDPS Double Layer PES
-

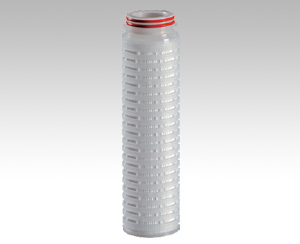

Leadtop LDPS Double Layer PES Cartridge Filter---- long life, Absolute filtration.
Leadtop LDPS Series PES Cartridge Filter is made of the Germany made double Layer Asymmetric PES membrane in Class 100,000 clean room. Each Filter is 100% integrity tested. The filter have very wide Chemical compatibility with PH endurance range 1-14.
Application：
LVP,SVP Sterile Filtration, Vaccine, Buffer Sterile Filtration, APIS Sterile Filtration.
-
Product Details
-
Order Information
Material of Constructions：
Media:Double Layer PES
Support Layer/Cage/Inner Core/End Cap:PP
Effective Filtration Area:0.65㎡/10”
Performance：
Max Operating Temperature:90℃ (1 week)
Max Operating Pressure Drop:4bar@21℃， 2.4bar@80℃
Steam Sterilization (Autoclave):121℃/30Mins
Integrity test
|
Diffusion Flow （10”@23℃） |
0.22+0.1um |
0.22+0.22um |
0.45+0.22um |
0.45+0.45um |
0.65+0.45um |
|
≤25ml/min @0.3Mpa |
≤20ml/min @0.275Mpa |
≤25ml/min @0.275Mpa |
≤15ml/min @0.16Mpa |
≤25ml/min @0.16Mpa |
Order Information：EG: LDPSBP10EP
| LDPS | Pore Size | End Cap | Length | Seal Materials | Core |
| A:0.22+0.1um | D:DOE | 5:5” | S:Silicone | P:PP Core | |
| B:0.22+0.22um | C:222 Flat | 10:10” | E:EPDM | S:SS Core | |
| C:0.45+0.22um | E:222 Flat / SS Lining | 20:20” | N:Buna-N | ||
| D:0.45+0.45um | F:222 Fin | 30:30” | V:Viton | ||
| E:0.65+0.45um | H:222 Fin / SS Lining | T:PTFE | |||
| J:226 Flat | F:Encapsulated PTFE | ||||
| K:226 Flat / SS Lining | |||||
| M:226 Fin | |||||
| P:226 Fin / SS Lining |
