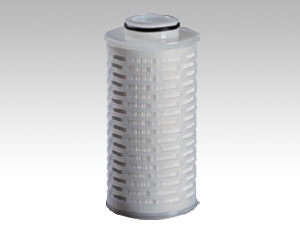

LB131 Series Pleated

  • Leadtop LB131 Series Pleated Cartridge filter----LCD Pannel Wet process filtration.

    Leadtop LB131 Series Pleated Cartridge Filter is designed for the filtration of LCD Panel manufacturing process. The filters are produced in Class 100,000 clean room, with optional filter media like PP, PES, PTFE. and large filtration area, it can meet the high flow rate of 200L/Min for the 7-10 grade line demand.

    Features:

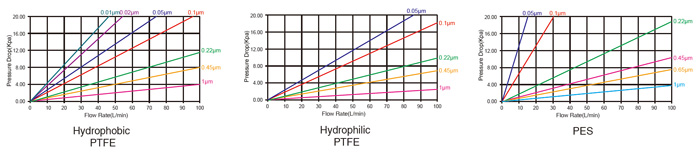

    High Flow Rate can meet 100L/Min , Low pressure drop
    Using high purity of electronic grade PP, thermal welded without using any chemical and glue.
  • Product Details

  • Order Information


Product Specification:

Dimension:
OD:131mm
Length:10”,20”

Material of Constructions:
Media:PP, PES,  Hydrophobic PTFE,Hydrophilic PTFE
Support layer/core/cage/End cap:PP

Performance:
Max Operating temperature:80℃,
Max Differential Pressure:4 bar,21℃
            2.4bar,80℃




Order Information  EG:LB131PS0.22S10E


LB131 Filter Media Pore size End Cap Length Seal Material
P:PP 0.1:0.1um S:334 Single O-ring 10:10” S:Silicone
PS:PES 0.22:0.22um   20:20” E:EPDM
PFB:Hydrophobic PTFE 0.45:0.45um     N:Buna-N
PFL:Hydrophilic PTFE 1:1um     V:Viton
  3:3um     T:PTFE
  5:5um     F:Encapsulated PTFE
  10:10um
