LB83 Series Pleated

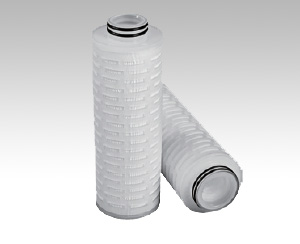

  • Leadtop LB83 Series Pleated Cartridge Filter----Large filtration area suitable for TFT-LCD.

    Leadtop LB83 Series Pleated Cartridge Filter is designed for the wetting process filtration in the flat panel display industry. The filters are produced in Class 100,000 clean room, with optional filter media like PP, PES, PTFE. and large filtration area, it can meet the high flow rate of 100L/Min for the 5-6 grade line demand.

    Features:
    High Flow Rate can meet 100L/Min , Low pressure drop.
    Using high purity of electronic grade PP, thermal welded without using any chemical and glue.
  • Product Details

  • Order Information



Product Specification:

Dimension:
OD:83mm,
Length:10",20"

Material of Constructions:
Media:PP, PES,  Hydrophobic PTFE,Hydrophilic PTFE
Support layer/core/cage/End cap:PP

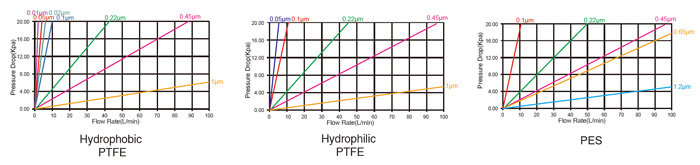

Performance:
Max Operating temperature:80℃,
Max Differential Pressure:4 bar,21℃
            2.4bar,80℃




Order Information  EG:LB83PS0.22J10E

LB83 Filter Media Pore size End Cap Length Seal Material
P:PP 0.1:0.1um C:222 Flat 10:10” S:Silicone
PS:PES 0.22:0.22um J:226 Flat 20:20” E:EPDM
PFB: Hydrophobic PTFE 0.45:0.45um     N:Buna-N
PFL:Hydrophilic PTFE 1:1um     V:Viton
  3:3um     T:PTFE
  5:5um     F:Encapsulated PTFE
  10:10um
