LPPH Series Pleated PP
-

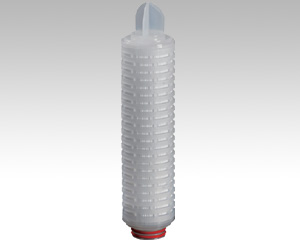

Leadtop LPPH Series Pleated PP Cartridge Filter-----High dirt holding capacity, long service life.
LPPH Series Pleated PP Cartridge Filter is constructed of high performance submicro level PP filter media. The pores of the material are uniformly distributed. The filter has very high dirt holding capacity, at the same time, it can meet the flow rate and filtration efficiency.
Application:
Food & Beverage, Process water pre-filtration and fine filtration.
-
Product Details
-
Order Information
Features：
High performance submicro PP filter media
High dirt holding capacity, long service life
Wide Chemical Compatibility
Product Specification：
Dimension：
OD：69mm
Length：5,10,20,30,40,50″
Material of Constructions：
Media: PP
Support Layer: PP
Cage/Endcaps: PP / PP (with SS Lining)
Core: PP / SS
Extractables: ﹤30mg/10”
Endotoxin: ﹤0.25EU/ml
Performance
Max Operating temperature：80℃,
Max Differential Pressure：4 bar,21℃
2.4bar,80℃
Order Information EG:LPPH1F10SP
| LPPH | Pore Size | End Caps | Length | Seal Material | Core |
| 0.1:0.1um | D:DOE | 5:5” | S:Silicone | P: PP Core | |
| 0.22:0.22um | C:222 Flat | 10:10” | E:EPDM | S: SS Core | |
| 0.45:0.45um | E:222Flat/SS Lining | 20:20” | N:Buna-N | ||
| 1:1um | F:222 Fin | 30:30” | V:Viton | ||
| 3:3um | H:222Fin/SS Lining | 40:40” | T:PTFE | ||
| 5:5um | J:226 Flat | 50:50” | F;Encapsulated PTFE | ||
| 10:10um | K:226 Flat/ SS Lining | ||||
| 25:25um | M:226 Fin | ||||
| 50:50um | P:226 Fin/SS Lining |
