LPPG Series Pleated PP
-

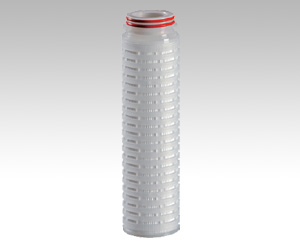

Leadtop LPPG Series Pleated PP Cartridge Filter-----High Filtration efficiency
LPPG Series Pleated PP Cartridge Filter is constructed of high performance submicro level PP filter media. The pores of the material are uniformly distributed. The filter has very high filtration efficiency widely use for the ultra pure water filtration of Fine Chemicals.
Application：
Ultrapure Water, Fine Chemical precision filtration
-
Product Details
-
Order Information
Features：
High performance submicro PP filter media
High filtration efficiency near to absolute filtration
Wide Chemical Compatibility
Product Specification：
Dimension：
OD：69mm
Length：5,10,20,30,40,50″
Material of Constructions：
Media: PP
Support Layer: PP
Cage/Endcaps: PP / PP (with SS Lining)
Core: PP / SS
Extractables: ﹤30mg/10”
Endotoxin: ﹤0.25EU/ml
Performance：
Max Operating temperature：80℃,
Max Differential Pressure：4 bar,21℃
2.4bar,80℃
Order Information: EG:LPPG0.22P10FP
|
LPPG |
Pore Size |
End Caps |
Length |
Seal Material |
Core |
|
0.1:0.1um |
D:DOE |
5:5” |
S:Silicone |
P: PP Core |
|
|
0.22:0.22um |
C：222 Flat |
10:10” |
E：EPDM |
S: SS Core |
|
|
0.45:0.45um |
E：222Flat/SS Lining |
20:20” |
N：Buna-N |
|
|
|
1:1um |
F:222 Fin |
30:30” |
V:Viton |
|
|
|
3:3um |
H:222Fin/SS Lining |
40:40” |
T：PTFE |
|
|
|
5:5um |
J：226 Flat |
50:50” |
F;Encapsulated PTFE |
|
|
|
10:10um |
K：226 Flat/ SS Lining |
|
|
|
|
|
25:25um |
M：226 Fin |
|
|
|
|
|
50:50um |
P：226 Fin/SS Lining |
|
|
|
