LSW Series String wound
-

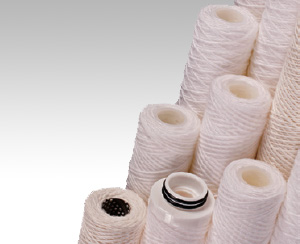

Leadtop LSW Series String wound Cartridge Filters are made of continuously string wound fiber media, which ensures uniform flow through the entire filter. It’s Outside open and Inner side tight structure has efficient filtration performance. It can remove the contaminant such as suspended particles, rust, etc.
Application：
RO Pre-filtration
-
Product Details
-
Order Information
Features:
Continuously Wound pattern
Wide Chemical compatibility
High dirt holding capacity, high flow rates, Lower DP.
Product Specification:
Dimension:
OD:63mm, 115mm
ID:28mm, 30mm
Length:10, 20, 30,40,50”
Material of Construction:
Media:PP, Bleached Cotton,GF
Inner Core:PP, S304
Performance:
Max Operating Temperature:PP 80℃/Cotton 120℃/GF 200℃

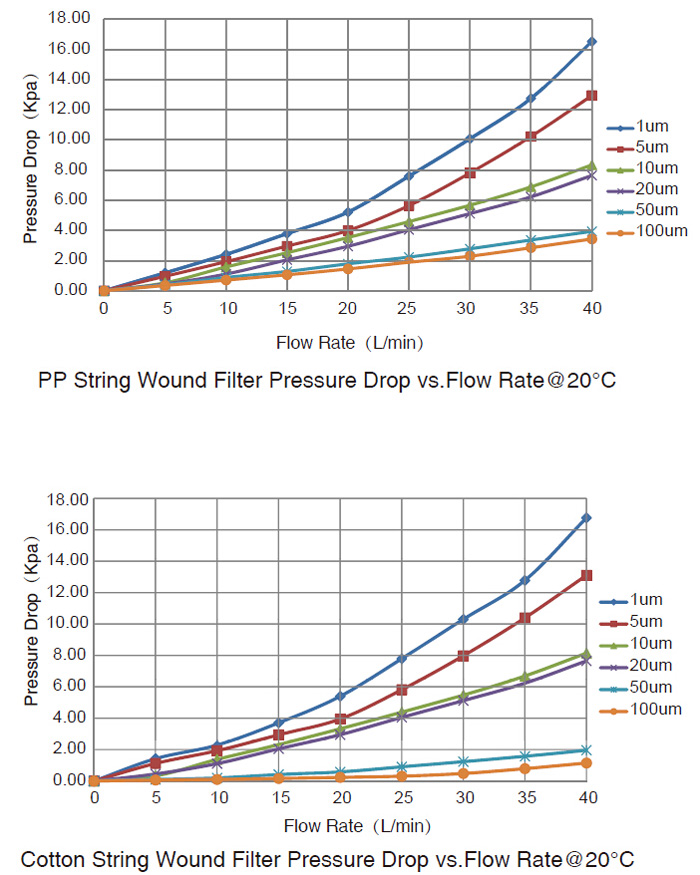

Max Operating DP:2 bar@21℃
Order Information EG：LSW540A
| LSW | Diameter | Pore Size | Length | End Caps | Seal Materials | Media |
| Blank:2.5“（63mm） | 1:1um | 10:10″ | Blank: No End caps | Blank: No | A:PP Yarn+ PP Core | |
| B:4.5” (115mm) | 3:3um | 20:20″ | D：DOE with Gasket | S: Silicone | B:PP Yarn+S304 Core | |
| 5:5um | 30:30″ | C:222 Flat | E: EPDM | C:Cotton+ S304 Core | ||
| 10:10um | 40:40″ | F:222 Fin | N：Buna-N | G: GF+ S304 Core | ||
| 25:25um | 50:50″ | J:226 Flat | V: Viton | D:Cotton+PP Core | ||
| 50:50um | M:226 Fin |
